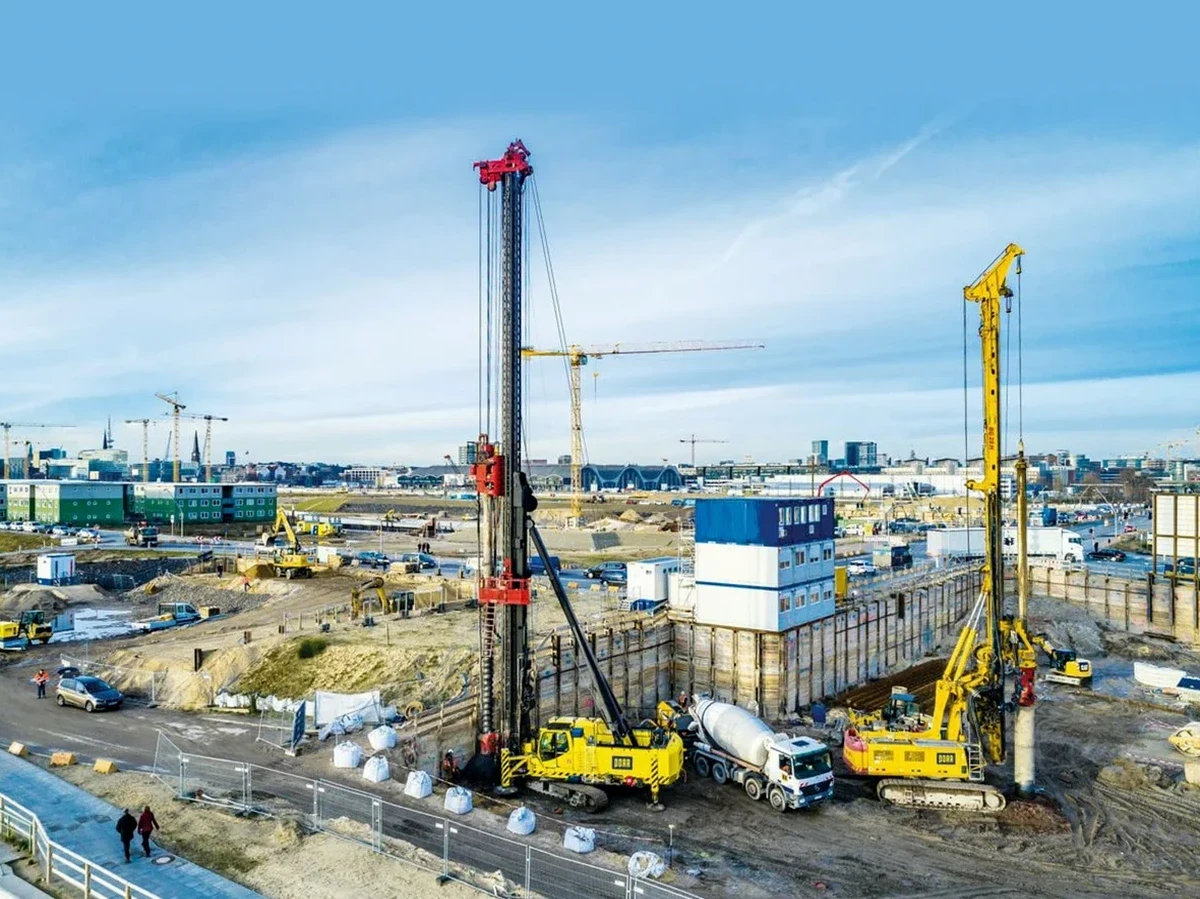

Waterloo sits squarely on the Waterloo Moraine, a complex glacial landform where up to 60 meters of interbedded till, sand, and gravel overlie fractured dolostone bedrock. The water table across the Region often sits just 2 to 5 meters below grade, feeding sensitive coldwater streams like Laurel Creek. Designing a deep foundation here means confronting highly variable stratigraphy: dense Halton Till lenses that can stop a conventional auger, interspersed with loose saturated sand pockets prone to caving. A pile foundation design that relies on generalized bearing values simply does not survive a third-party review by the municipality. The team correlates subsurface data from spt-drilling with bedrock contours mapped by the Ontario Geological Survey to establish refusal depths that are predictable rather than assumed. In areas west of the Conestoga Parkway, where the drift is thinner, we often transition from friction piles in the overburden to end-bearing piles socketed into the Guelph Formation limestone, requiring rock core confirmation before finalizing the pile foundation design geometry.
In Waterloo's interlobate moraine, pile foundation design is not about selecting a capacity from a table; it is about reconciling borehole data with the three-dimensional reality of a buried bedrock landscape.
Service characteristics in Waterloo Ontario
Demonstration video
Risks and considerations in Waterloo Ontario
NBCC 2020 Article 4.2.4 and the Ontario Building Code require a geotechnical investigation that provides ultimate and serviceability limit state parameters for deep foundations. In Waterloo, the primary risk is not structural failure of the pile itself, but loss of serviceability due to downdrag. The compressible silty clay layers within the upper till, when loaded by new site grading or adjacent building fills, can consolidate and impose negative skin friction exceeding 30 kPa along the upper shaft. Ignoring this in the pile foundation design leads to settlements that breach the 25 mm total and 15 mm differential limits typical for municipal and institutional buildings. A secondary risk is artesian conditions encountered during drilling in the bedrock valleys; we specify full-length temporary casing and tremie placement of concrete in these zones to prevent necking, referencing the installation tolerances of CSA A23.3 Clause 20 for drilled shafts. The team has managed these conditions on multiple sites in the Northdale and Beechwood neighborhoods.
Our services
Our pile foundation design deliverables in Waterloo are structured to meet both the City's permit submission requirements and the constructability demands of regional contractors. Each package includes a factual geotechnical data report, an interpretative design report with LRFD capacity tables, and construction specifications with inspection protocols.
LRFD Pile Capacity Design
Axial and lateral resistance calculations per CFEM 2006 and CSA S6-19 for Ontario building structures. We provide factored geotechnical and structural resistance tables for driven steel H-piles, closed-end pipe piles, and drilled shafts, incorporating site-specific unit shaft friction and end bearing values derived from SPT N60 correlations and laboratory triaxial testing on Shelby tube samples.
Pile Load Testing and Validation
Specification and supervision of static axial compressive load tests per ASTM D1143, high-strain dynamic testing with CAPWAP signal matching, and PDA monitoring during driving. We use the test results to calibrate the geotechnical resistance factors and optimize the pile foundation design, often reducing the required pile length by 10 to 15 percent on Waterloo sites with competent till at depth.
Frequently asked questions
What is the typical cost range for a pile foundation design in Waterloo?
For a standard commercial or institutional building in Waterloo Region, the engineering fee for a complete pile foundation design package — including the geotechnical investigation report, LRFD capacity calculations, and construction specifications — typically falls between CA$2,270 and CA$9,250. The final fee depends on the number of pile types evaluated, the complexity of the soil profile, and whether a static load test program is included. Projects requiring specialized analysis for downdrag or lateral spreading near creek valleys fall toward the upper end of that range.
How deep do piles typically need to go in the Waterloo Moraine?
Pile depths in Waterloo are controlled by bedrock topography rather than a fixed depth. In areas like the central University Avenue corridor, bedrock can be found at 15 to 20 meters, while near the west end of Columbia Street the drift thickens and piles may extend to 45 meters or more. We use deep boreholes at each critical column location to map the rock surface and determine whether a friction pile in dense till or an end-bearing pile socketed into the Guelph Formation is the more economical solution.
Do Waterloo building permits require a separate pile foundation design report?
Yes. The City of Waterloo Building Division requires a sealed geotechnical report that explicitly addresses deep foundation design, including pile type, capacity, settlement estimates, and installation criteria. This report must be signed and sealed by a Professional Engineer licensed in Ontario and must demonstrate compliance with the Ontario Building Code, which references NBCC 2020 and CSA A23.3. The report is reviewed alongside the structural drawings as part of the permit application.
