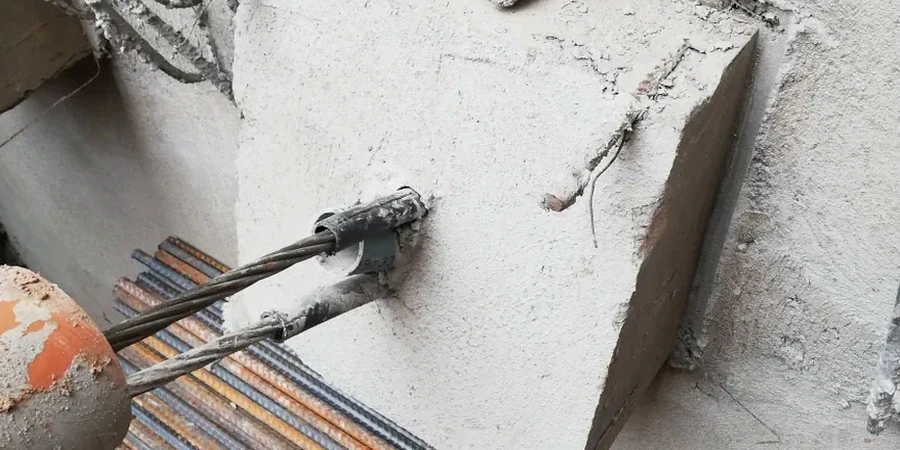

Waterloo's rapid expansion from a farming community into a tech hub has pushed development into areas with challenging overconsolidated glacial till and interlobate moraine deposits. The city sits on the Waterloo Moraine, a complex stratigraphy of silty clay tills, sand lenses, and gravel pockets that can make deep excavations unpredictable. When a project near the University of Waterloo required a 9-metre cut adjacent to an existing research facility, passive rock anchors weren't a viable option because bedrock sits 30-plus metres down. The solution demanded a grouted active anchor system designed to transfer tensile loads deep into the dense till, verified through sacrificial testing before production installation. For projects in the city's north end near the St. Jacobs Farmer's Market, where the till contains more granular interbeds, we often combine anchor design with CPT testing to map the exact depth of bearing strata before finalizing bond lengths.
A properly designed active anchor in Waterloo's till can hold 600 kN per strand, but only if the fixed length sits below the weathered crust and the grout injection pressure is controlled to avoid hydrofracture.
Service characteristics in Waterloo Ontario
Risks and considerations in Waterloo Ontario
During the excavation for a condo tower near Waterloo Town Square, the shoring crew hit an unmapped sand lens at 7 metres depth that started piping groundwater into the cut, undermining the passive anchor zone behind the wall. The passive anchors in the upper rows simply lost confinement because the soil arch collapsed once the fines began to wash out. We had to redesign the support system on the fly, converting the upper rows to active anchors with a rapid-set grout and installing horizontal drains to relieve the pore pressure. The lesson stuck: Waterloo's interlobate moraine can hide saturated granular seams that turn a straightforward tieback installation into a flowing ground problem. Active anchors give you more control in these conditions because you can tension them immediately and test load transfer before the next lift goes in, whereas passive anchors depend entirely on soil movement to generate resistance—movement that might already be accelerating toward a failure plane.
Our services
Anchor design in Waterloo's glacial stratigraphy requires more than just pullout calculations. Our team provides a complete design-build support package tailored to the local till conditions and municipal requirements.
Active anchor design and load testing
Full tendon specification, bond length determination using local till friction values, lock-off load sequence, and on-site proof testing to verify the 1.33x design load criterion per CSA A23.3.
Passive anchor and soil nail systems
Design of grouted passive bars for temporary and permanent shoring in Waterloo's stiff clays, including global stability checks with the anchored wall geometry and staged excavation sequencing.
Corrosion protection and long-term monitoring
Class I double encapsulation detailing for anchors in urban environments where de-icing salts have elevated soil conductivity, plus vibrating wire load cell installation and quarterly monitoring programs.
Frequently asked questions
What is the difference between active and passive anchors for a shoring wall in Waterloo?
Active anchors are tensioned with a hydraulic jack right after grouting cures, applying a pre-determined lock-off load that immediately restrains the wall against movement. Passive anchors develop their resisting force only when the wall deflects enough to mobilize soil friction along the fixed length. In Waterloo's stiff till, you can use passive anchors for cuts under 5 metres, but deeper excavations—like the ones near the Ion LRT line—require active anchors to keep lateral deflections within serviceability limits and protect adjacent infrastructure.
What's the typical cost range for anchor design and testing in Waterloo?
For a medium-scale project with 2 to 4 anchor rows, the combined design, load testing, and documentation package typically falls between CA$1,260 and CA$4,640, depending on the number of anchors, the complexity of the stratigraphy, and whether corrosion protection needs to be upgraded to Class I.
How deep does the fixed length need to be in Waterloo's glacial till?
In the Port Stanley Till that underlies most of Waterloo, the fixed length should be installed below the weathered crust—typically starting at 5 to 6 metres depth—where the till is grey, dense, and unoxidized. Bond lengths usually range from 6 to 15 metres depending on the design load and the presence of sand interbeds. We verify bond stress assumptions with pressuremeter testing or pullout tests on sacrificial anchors before finalizing the production design.
What corrosion protection is required for permanent anchors in Waterloo?
For permanent anchors with a design life over 24 months, CSA A23.3 requires Class I corrosion protection when the ground is aggressive. Waterloo's near-surface soils often have elevated sulfate and chloride levels from decades of winter de-icing runoff, so we specify double encapsulation—a corrugated plastic sheath over the tendon, grouted inside a second corrugated duct—for the free length, and a minimum 15 mm grout cover over the encapsulation in the fixed length.
How do you test an anchor after installation?
Every active anchor undergoes a proof test where we load it to 1.33 times the design load in incremental steps, measuring creep at each load level. The criterion is that creep between 1 and 10 minutes at the test load must not exceed 2 mm. After the proof test, we unload and re-tension to the lock-off load. For passive anchors, we test a sacrificial representative anchor to 1.5 times the design load to confirm the bond stress assumptions before production installation begins.
